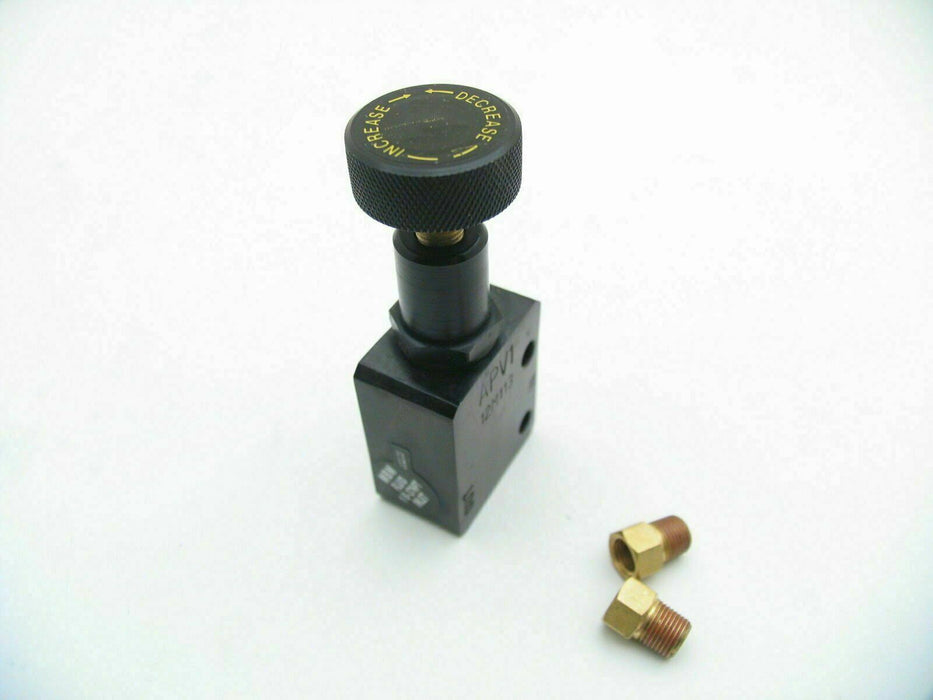

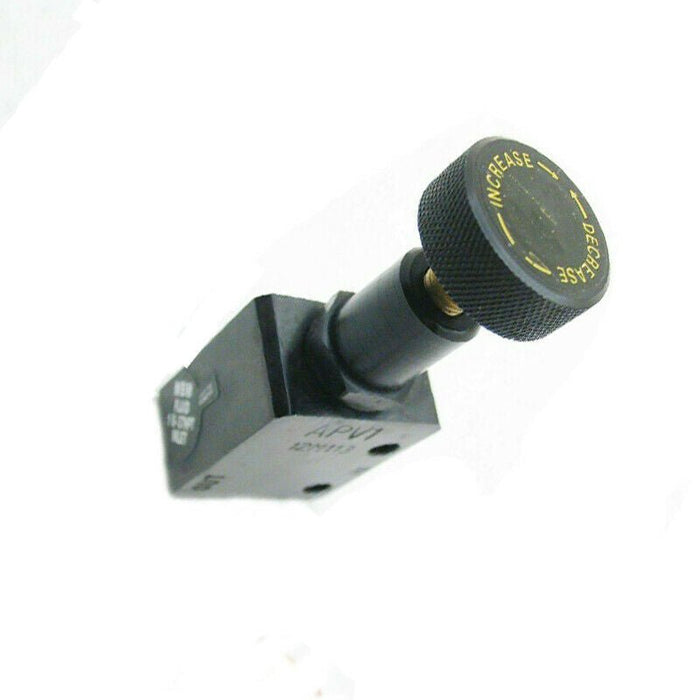

Adjustable Proportioning Valve With Residual Valve Kit Disc-Disc

A-Team Performance Adjustable Universal Hot Rod Proportioning Valve and Residual Valves

Adjustable proportioning valves essentially pressure reducing valves and are often utilized in disc/drum, disc/disc, and drum/drum braking systems.

The valve is used to control front-to-rear brake pressure bias and will work for all types of vehicles.

Install this valve between the distribution block and the rear flex hose in the front-to-rear rigid brake line.

Always use tube wrenches to tighten fittings properly.

The final settings of this valve will depend on your particular vehicle and individual preference.

SPECIFICATIONS

• (Stamped on the valve) Rigid brake line from the distribution block to this port. On early cars: the master cylinder rear port to this port.
• (Stamped on the valve) Rigid brake line to the rear flex hose.
• Reduces the brake line pressure to the rear brakes.
• Increases the pressure to the rear brakes.
• Maximum pressure regulation: 300 psi. Inlet port of valve: 1/8 27 NPT
• Standard adaptors: 3/8 24 for 3/16 line.
• Mounting hole diameter: .250(two).

Kit Includes:

• Residual valves
• Adjustable Proportioning Valve
• Disc/disc applications
• The adjustable valve has 3/8-24 IFF fittings.

Approximately 2 lbs.
