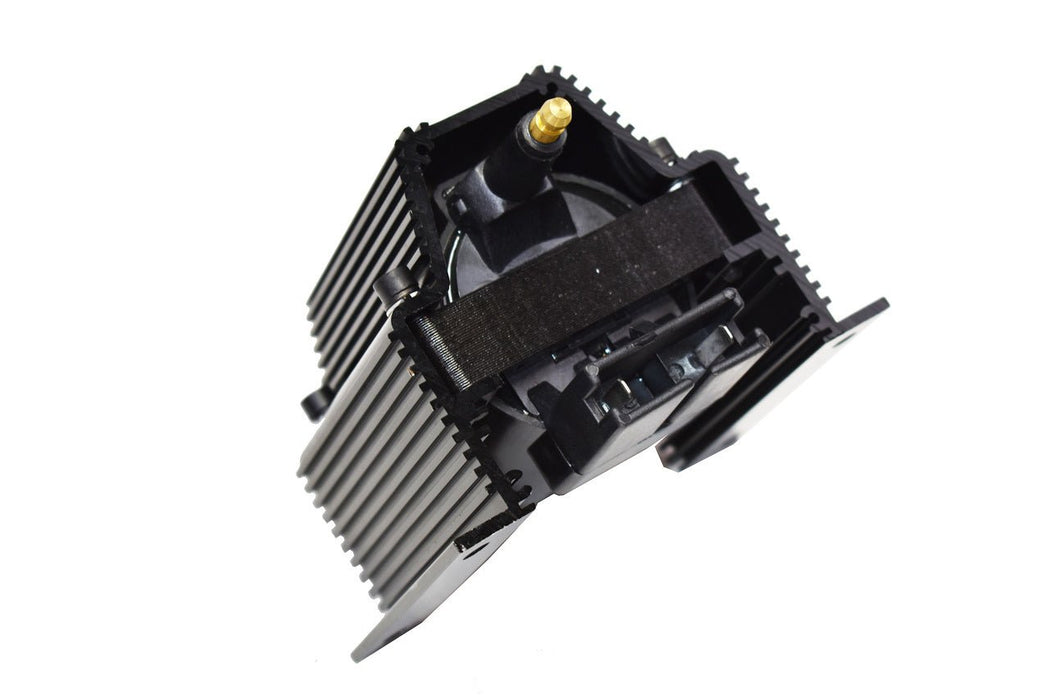

50,000 Volt Remote E-Coil Ignition Coil Black
A-Team Performance 50,000 Volt Remote E-Coil Ignition Coil Black

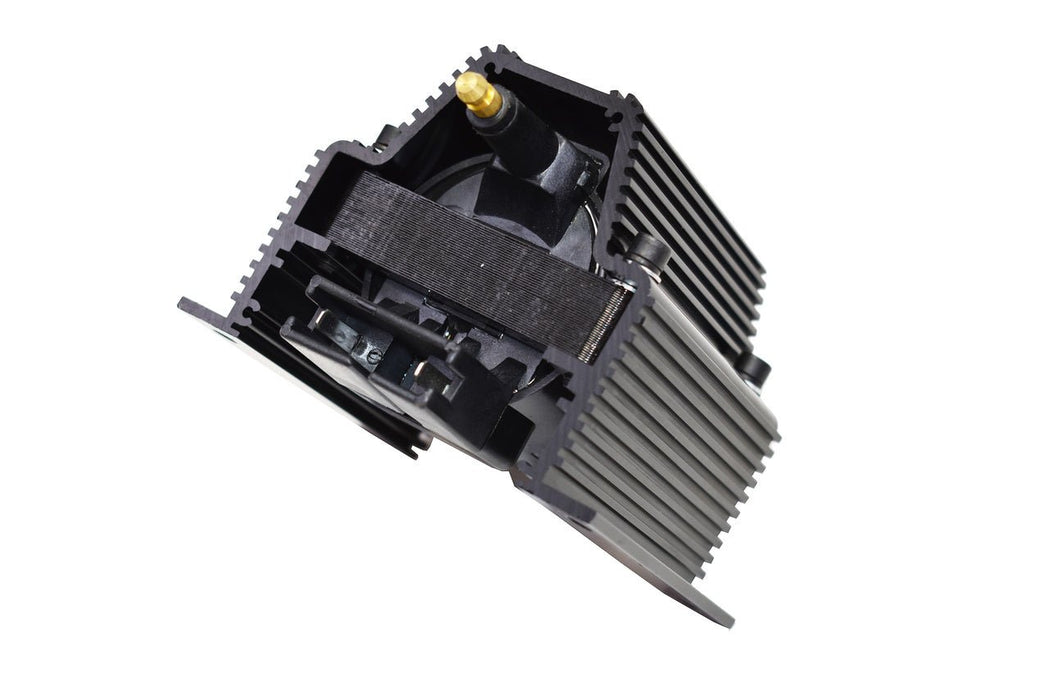

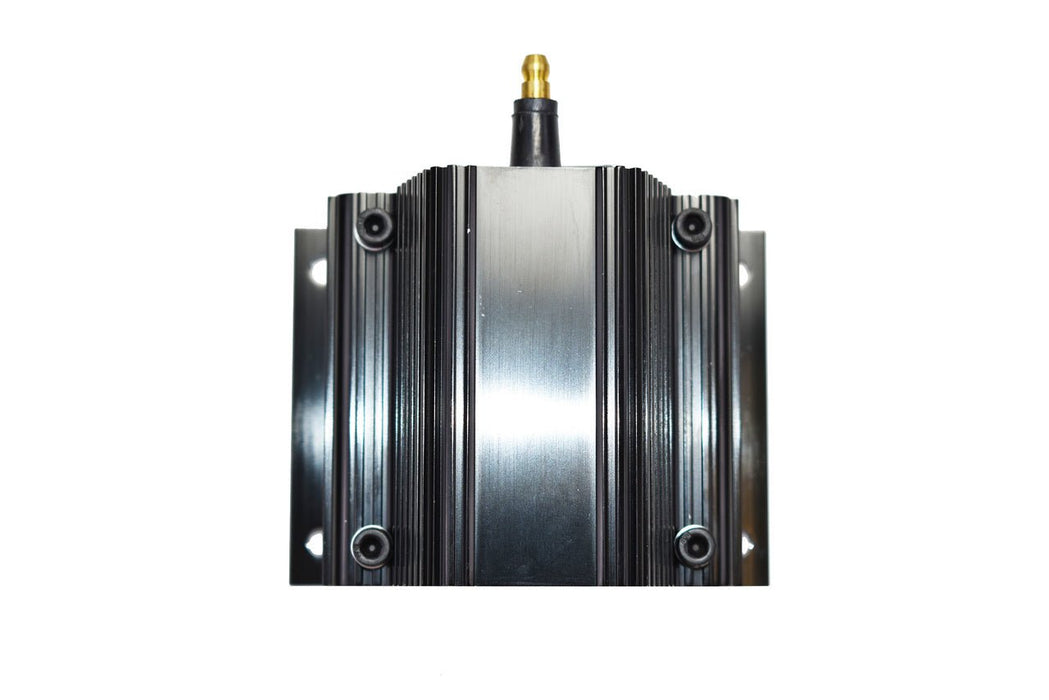

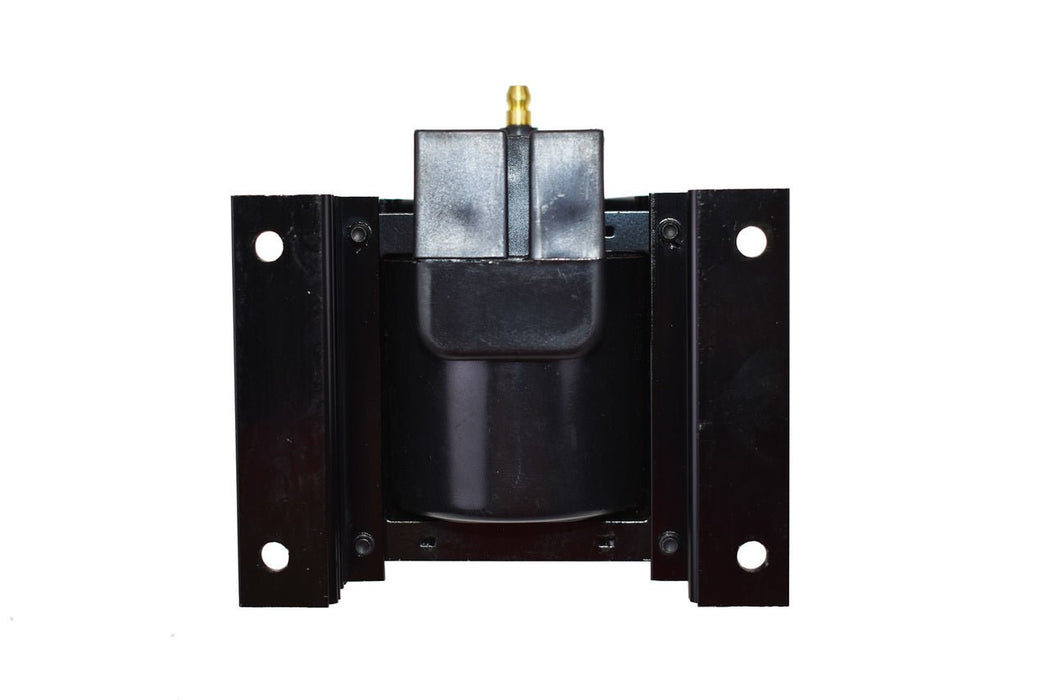

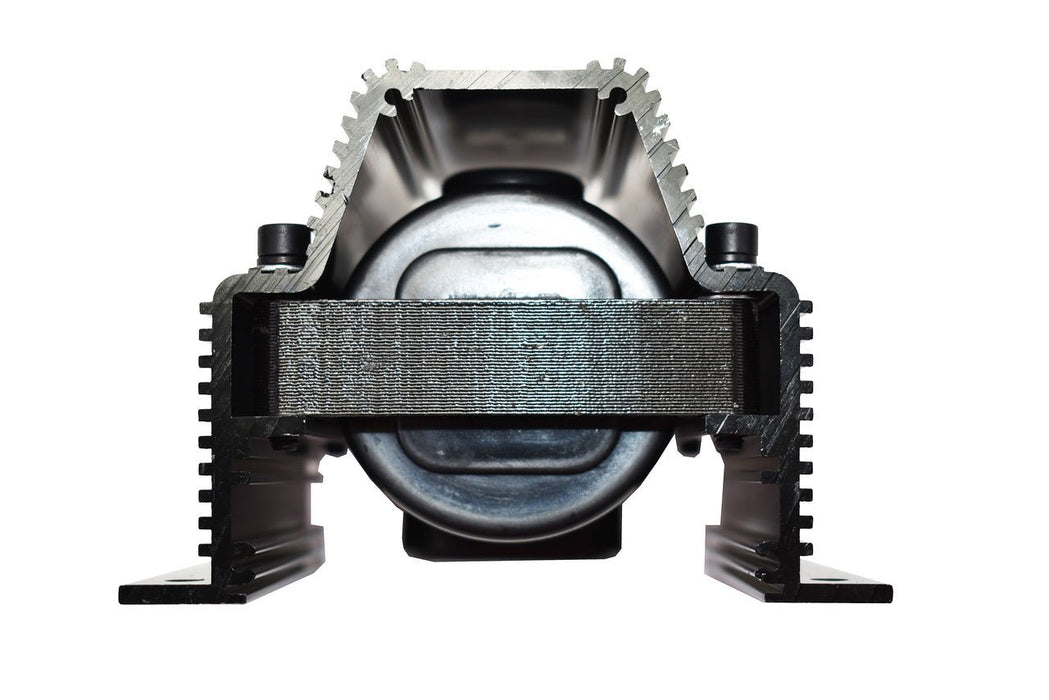

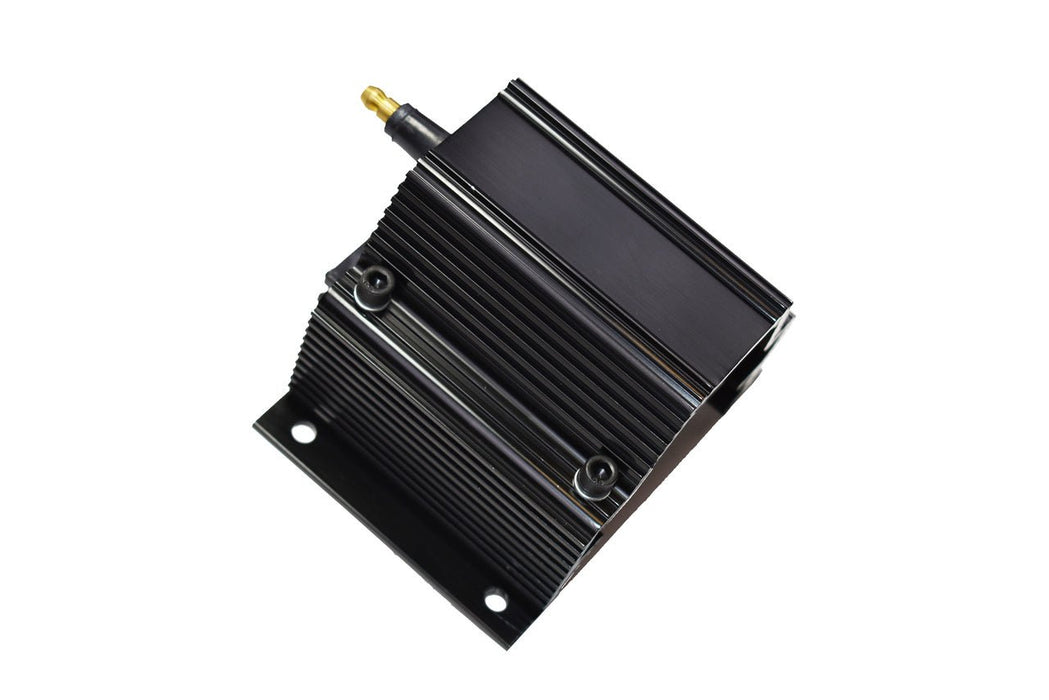

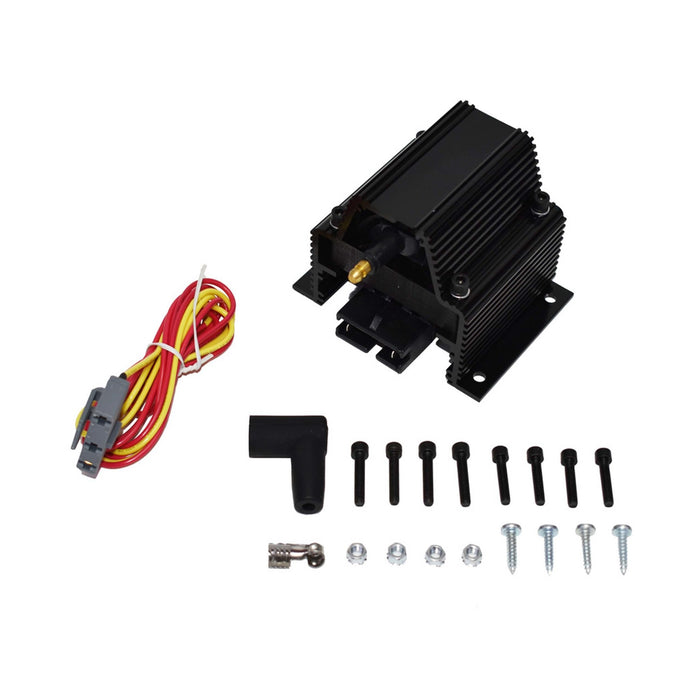

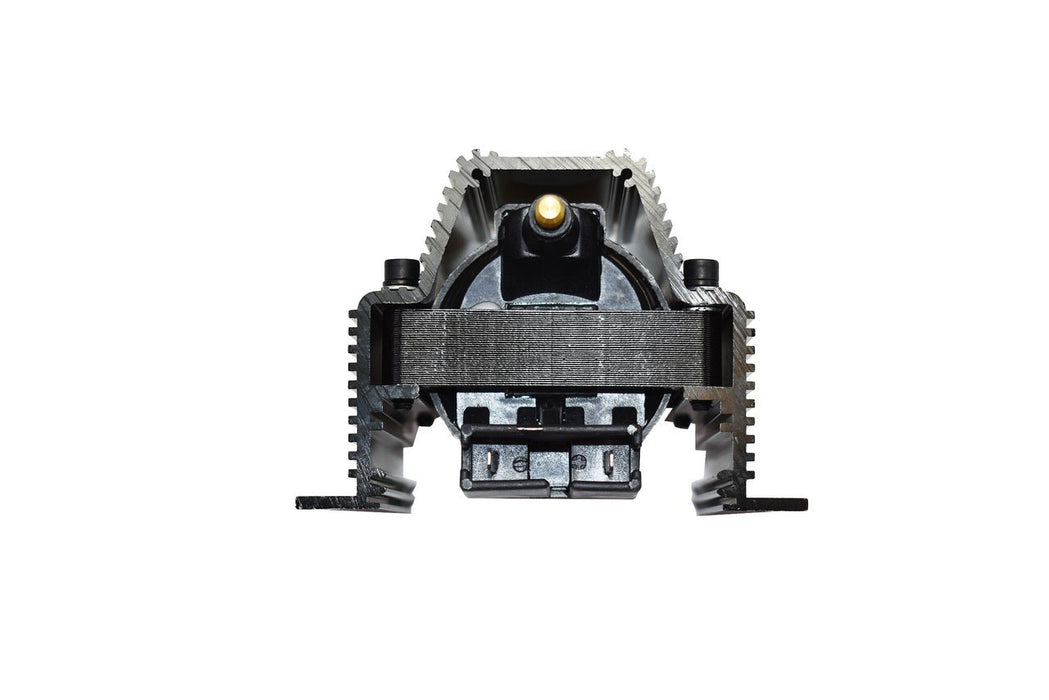

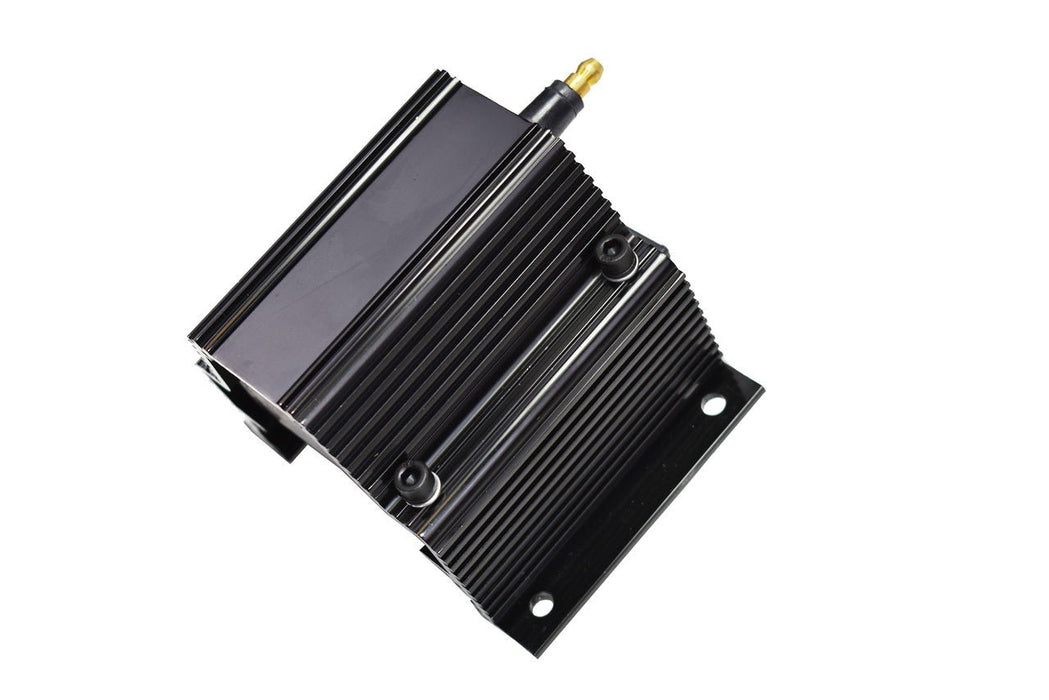

A-Team's E-Core Ignition Coil has a new design that better dissipates heat. Its square shape allows for easy mounting on a firewall or fender, and it comes with a plug wire connector for a clean installation.
The E-Core magnet puts out 50,000 volts, or about 70% more spark energy over most stock applications, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration throughout the entire RPM band.
Secured in a billet aluminum housing, our ignition coil features a top-quality epoxy internal construction, a brass wire attachment, and premium e-core magnet to ensure superior output and lasting performance.
SPECIFICATIONS:
- COIL STYLE - E-core
- INTERNAL CONSTRUCTION - Epoxy
- PRIMARY RESISTANCE - 0.35 ohms
- SECONDARY RESISTANCE - 8,000 ohms
- MAXIMUM VOLTAGE - 50,000 volts
- SPARK DURATION - 200 microseconds
- PEAK CURRENT - 260 milliamperes
- TURNS RATIO - 100:1
- INDUCTANCE - 7.0 millihenrys
- COIL SHAPE - Square
- HOUSING MATERIAL - Billet Aluminum
- COIL WIRE ATTACHMENT - Male
