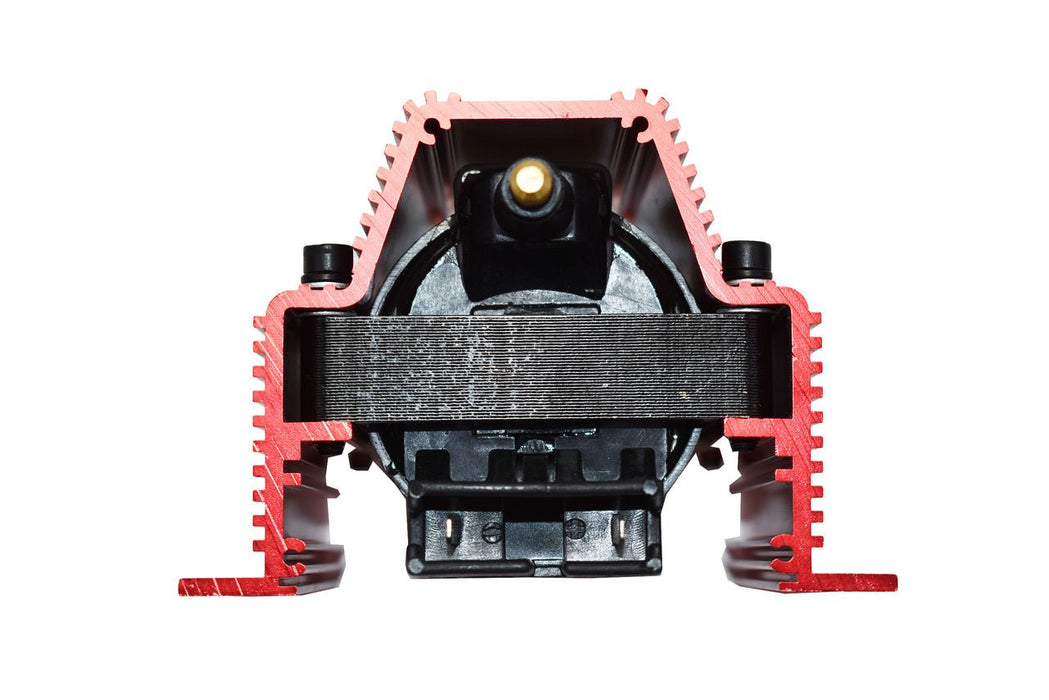

Remote E-Coil Ignition Coil Red 50,000 Volt
A-Team Performance 50,000 Volt Remote E-Coil Ignition Coil Red

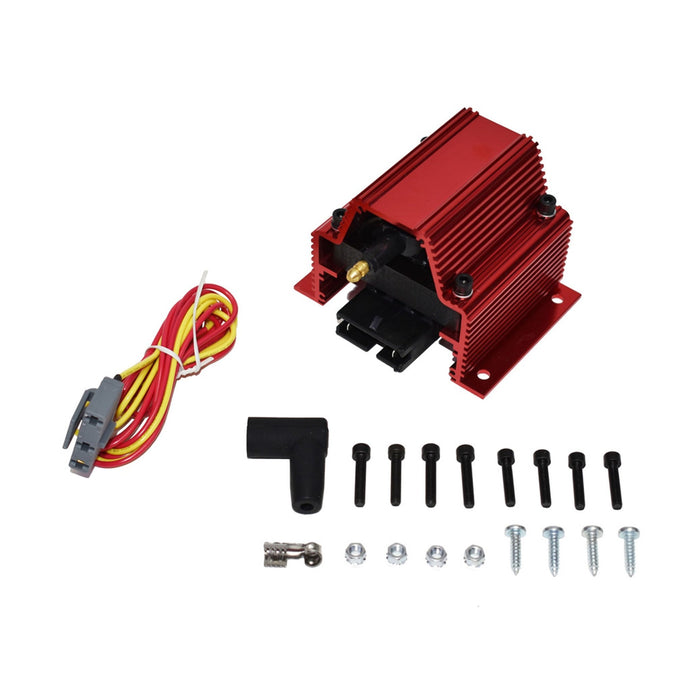

A-Team's E-Core Ignition Coil has a new design that better dissipates heat. Its square shape allows for easy mounting on a firewall or fender, and it comes with a plug wire connector for a clean installation. The E-Core magnet puts out 50,000 volts, or about 70% more spark energy over most stock applications, giving you a much hotter and larger spark to burn fuel more efficiently and provide smooth acceleration thoroughout the entire RPM band.

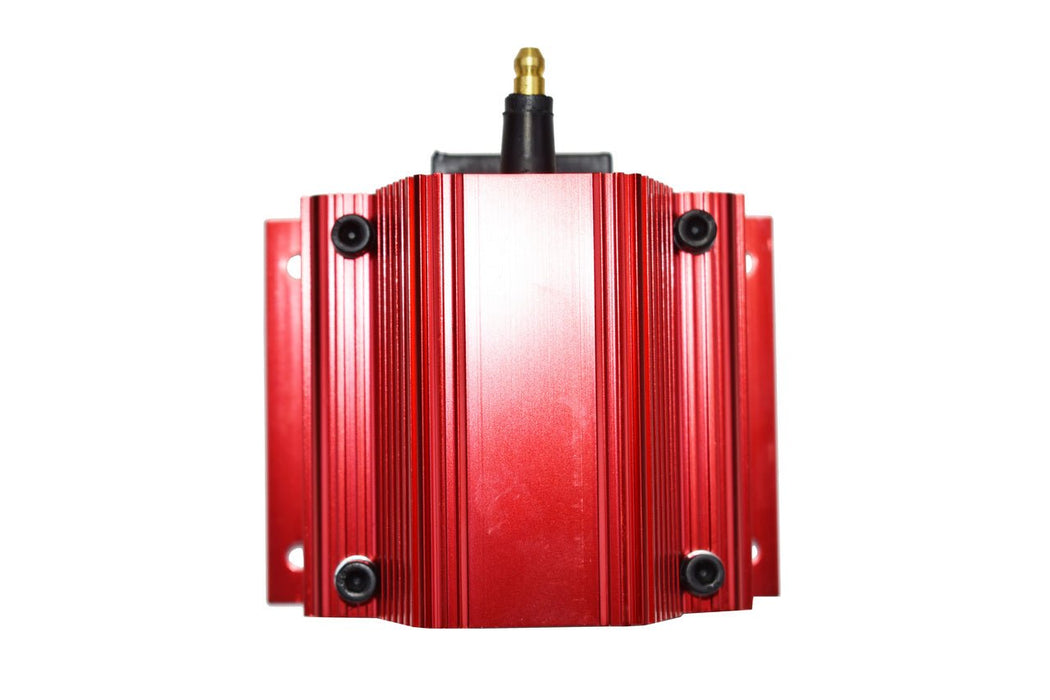

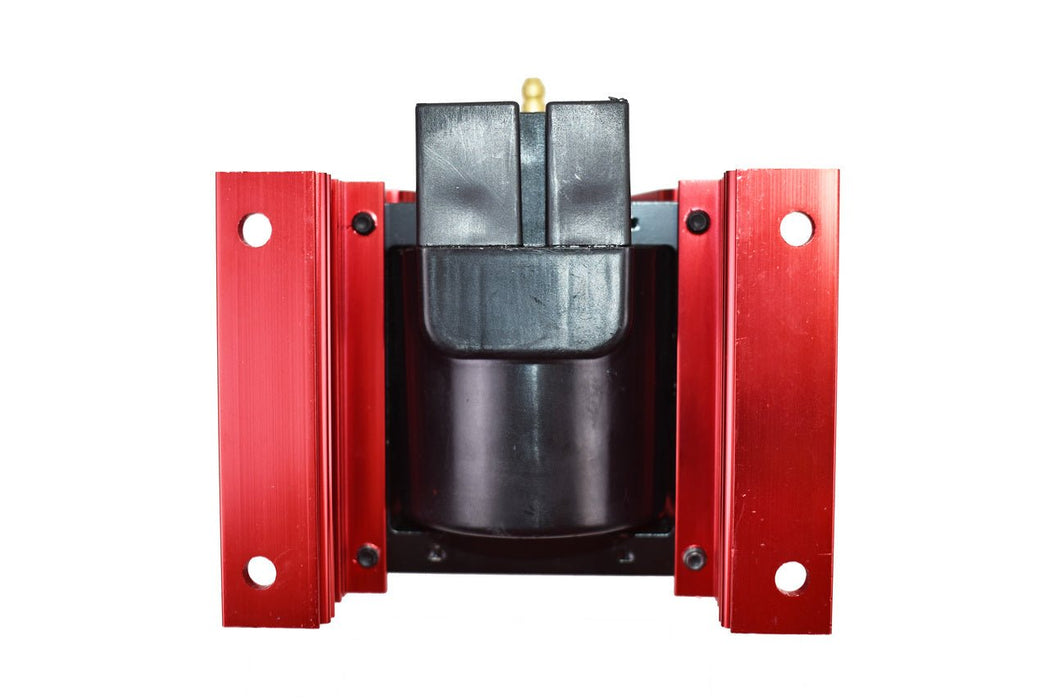

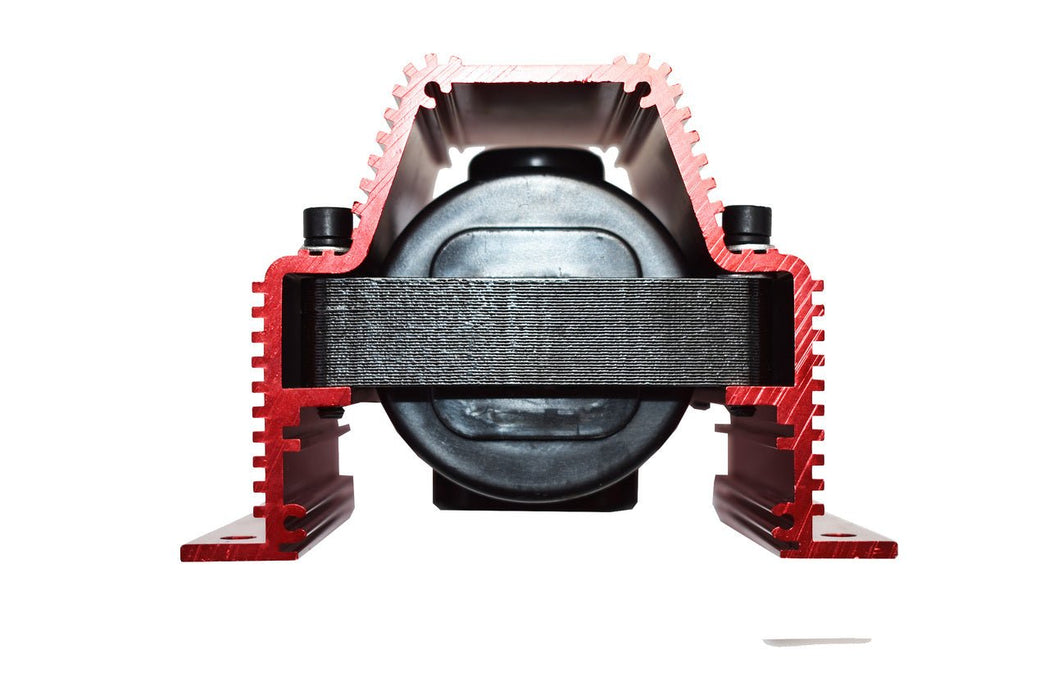

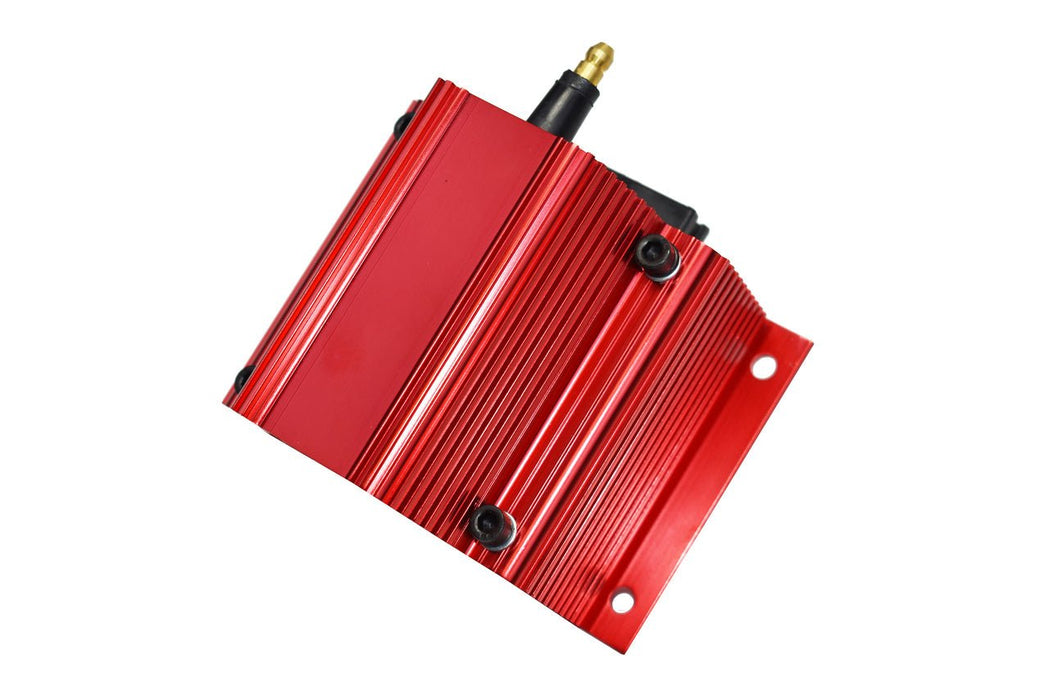

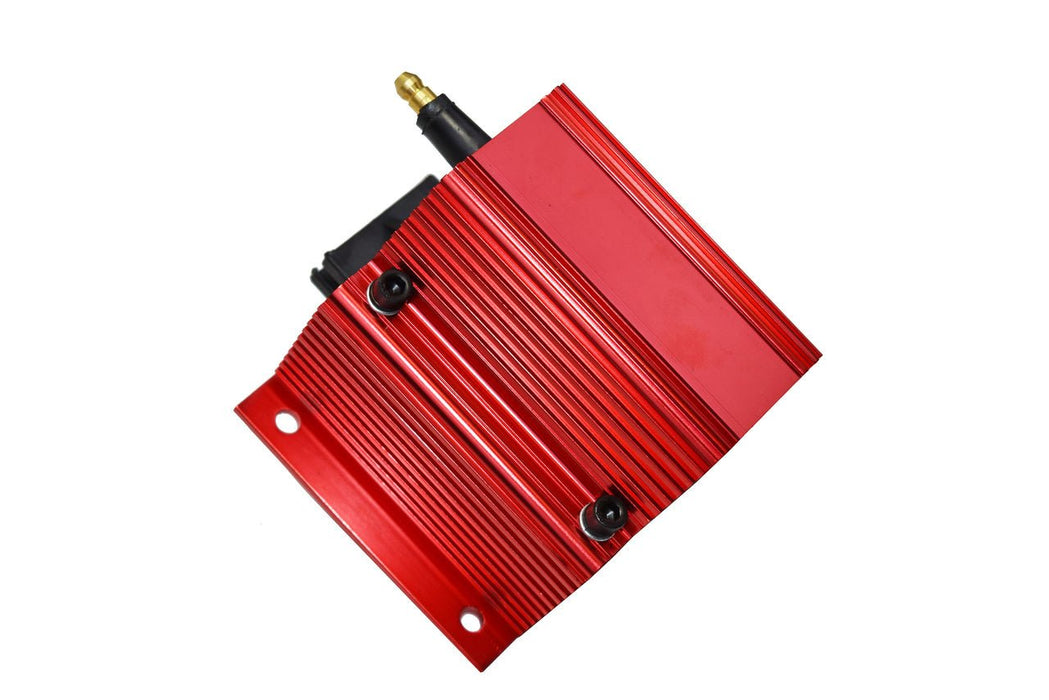

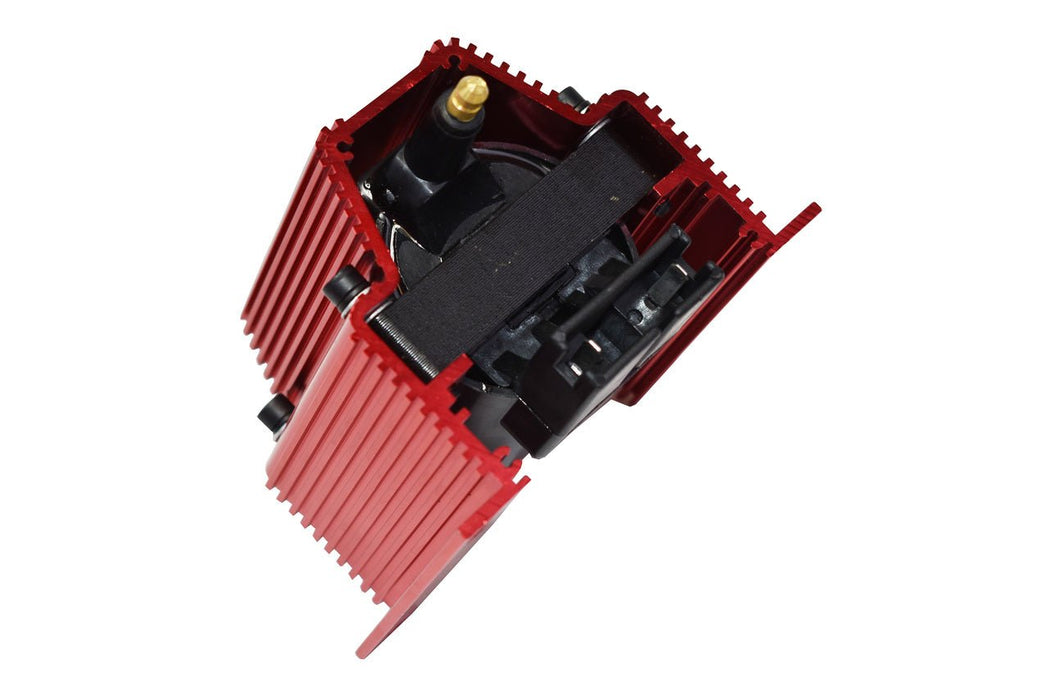

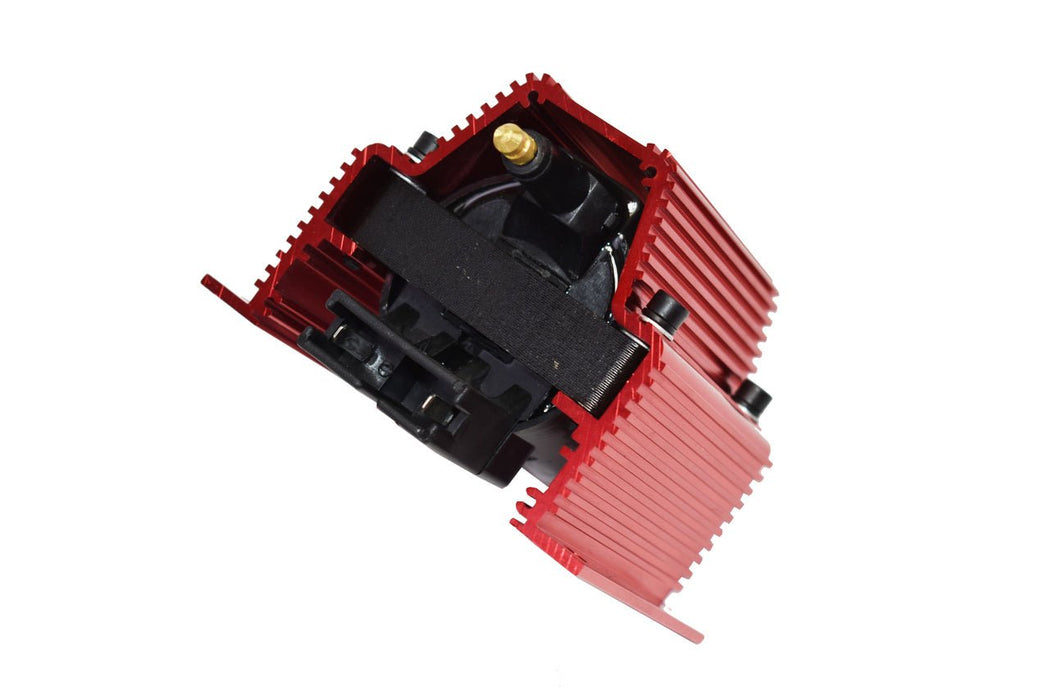

Secured in a billet aluminum housing, our ignition coil features a top-quality epoxy internal construction, a brass wire attachment, and premium e-core magnet to ensure superior output and lasting performance.
SPECIFICATIONS:
COIL STYLE: E-core
INTERNAL CONSTRUCTION: Epoxy
PRIMARY RESISTANCE: 0.35 ohms
SECONDARY RESISTANCE: 8,000 ohms
MAXIMUM VOLTAGE: 50,000 volts
SPARK DURATION: 200 microseconds
PEAK CURRENT: 260 milliamperes
TURNS RATIO: 100:1
INDUCTANCE: 7.0 millihenrys
COIL SHAPE: Square
HOUSING MATERIAL: Billet Aluminum
COIL WIRE ATTACHMENT: Male
